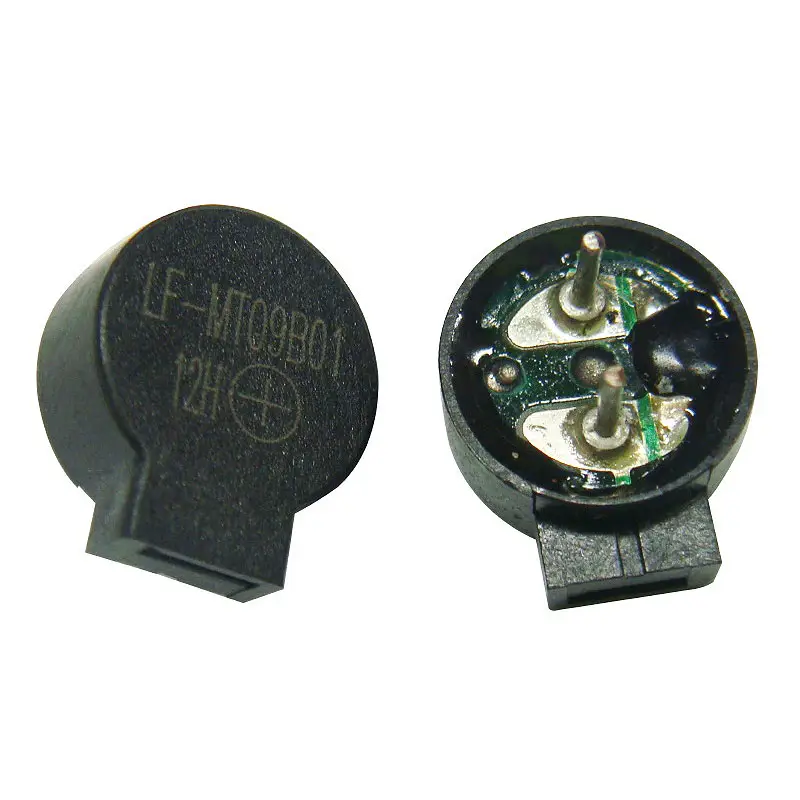

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Specification
| Rated Voltage ( Vo-p ) | 1.5 |
| Operating Voltage ( Vo-p ) | 1~3 |
| Current Consumption ( mA ) | 80 max |
| Coil Resistance ( Ω ) | 5.5 ± 1 |
| Sound Pressure Level at 10cm | 80dB min. |
| Resonant Frequency ( Hz ) | 2730 |
| Operating Temperature ( ℃ ) | -20 ~ +70 |
| Weight | 1.0gms. |
Specification
| Rated Voltage ( Vo-p ) | 1.5 |
| Operating Voltage ( Vo-p ) | 1~3 |
| Current Consumption ( mA ) | 80 max |
| Coil Resistance ( Ω ) | 5.5 ± 1 |
| Sound Pressure Level at 10cm | 80dB min. |
| Resonant Frequency ( Hz ) | 2730 |
| Operating Temperature ( ℃ ) | -20 ~ +70 |
| Weight | 1.0gms. |
