Description
Product ID
LA ICK PEN 3 XE SM
Product Category
For Processors
Description

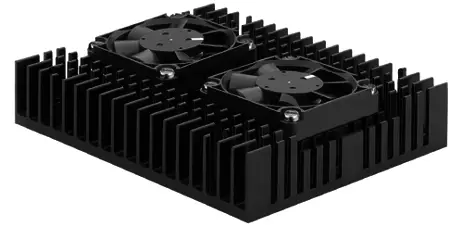

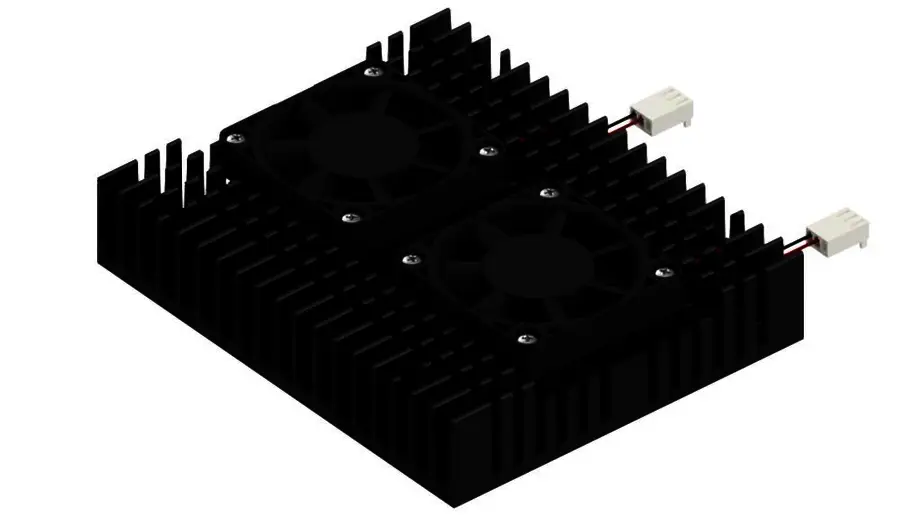

for Intel Pentium III Xeon
Parameters
Features
| way of fixation | screw fastening |
| socket | Slot 2 |
| thermal resistance | 0.8K/W |
| suitable for processor type | Intel® Pentium® III-XeonTM |
| dissipation loss | 61.8W |
| operating voltage of the fan motor | 12 V |
| surface | black anodised |
| accessories (optional) | molex connection plug |
| circuit voltage | 12 V DC |
| bearing type | ball bearing |
| fan dimensions | 50x50x10mm |
| cur. consumpt. | 50mA |
| max. iuitial current | 140mA |
| max. volume flow | 238 l/min14.3 m3/h |
| max. static pressure | 3.0mm H2O29.6 Pa |
| noise level | 27 dB(A), 1 m frontal |
| temperature range | -40°C… +85°C |
| failure rate (l10) | 40.000 h (40°C) |
| mtbf | 350.000 h (40°C) |
| weight | 19g |
| cases | plastic PBT(UL E54695) |
