Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

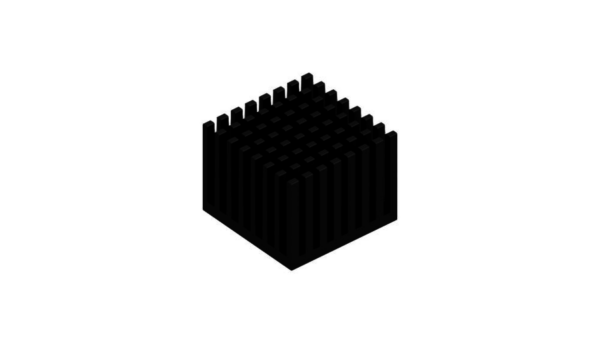

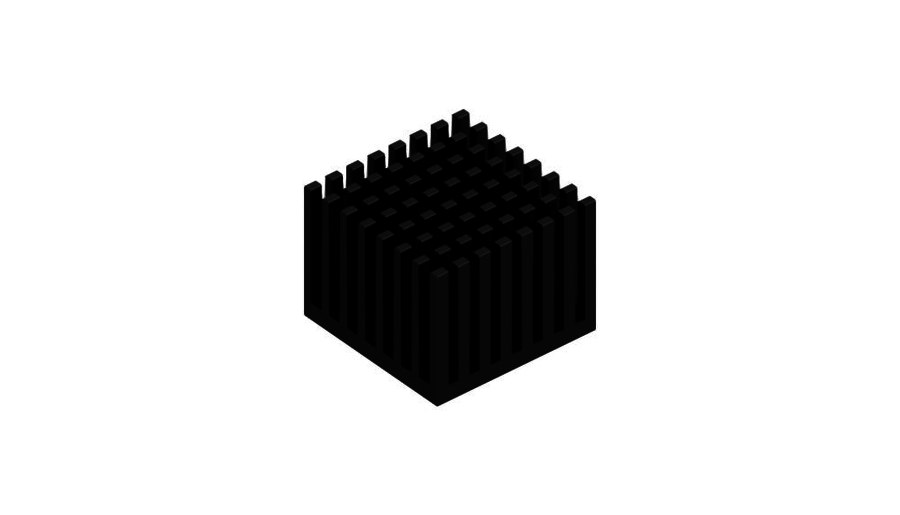

ICK PEN 38 W
For Processors
for Intel Pentium and MMX

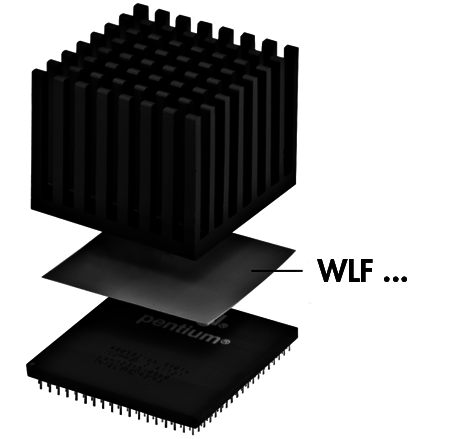

| way of fixation | therm. cond. adhesive |
| socket | socket 7
socket 370 |
| suitable for processor type | AMD® K6-III
IDT W2A MMX IDT C6 Intel® Pentium® AMD® K6-2 |

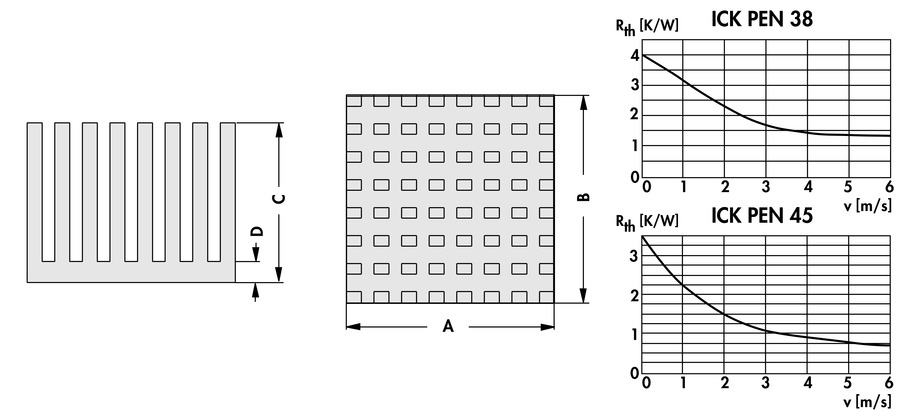

| thermal resistance | 4K/W |
| dissipation loss | 15.1W |
| surface | black anodised |
| a | 49.5mm |
| b | 49.5mm |
| c | 38mm |
| d | 5mm |
ICK PEN 38 W
For Processors
for Intel Pentium and MMX
| way of fixation | therm. cond. adhesive |
| socket | socket 7
socket 370 |
| suitable for processor type | AMD® K6-III
IDT W2A MMX IDT C6 Intel® Pentium® AMD® K6-2 |
| thermal resistance | 4K/W |
| dissipation loss | 15.1W |
| surface | black anodised |
| a | 49.5mm |
| b | 49.5mm |
| c | 38mm |
| d | 5mm |
| Surface |
|---|
