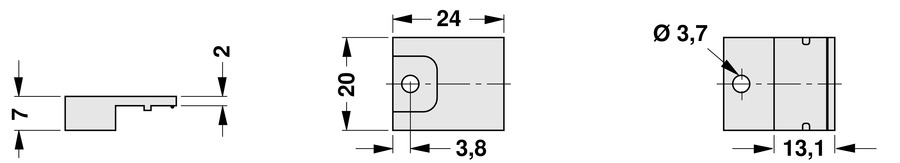

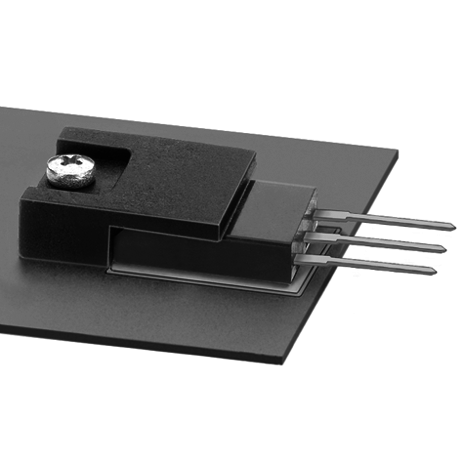

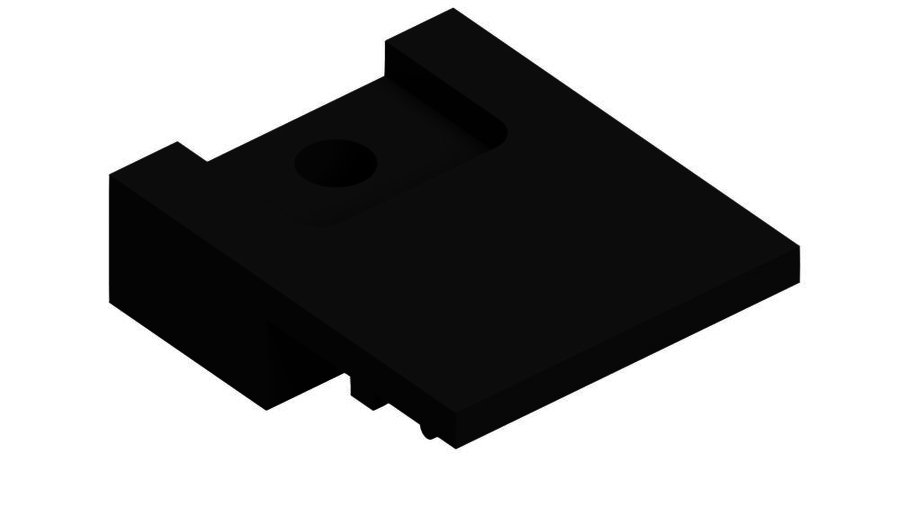

ISP 247
Mounting Material for Single Semiconductors
for semiconductor-design TO 247
| for transistor | TO 247 |
| material | polyamide 6, GF reinforced |
| heat distortion | 215°C(0.45 MPa); 205°C(1.8 MPa) |
| dielectric constant | 4 [1 MHz] |
| dielectric loss factor | 400 [1 MHz] |
| specific volume resistance | 1015Ω·cm |
| colour | black |
| class of inflammability | UL 94 V-0 |
| dielectric strength | 28 kV/mm |
ISP 247
Mounting Material for Single Semiconductors
for semiconductor-design TO 247
| for transistor | TO 247 |
| material | polyamide 6, GF reinforced |
| heat distortion | 215°C(0.45 MPa); 205°C(1.8 MPa) |
| dielectric constant | 4 [1 MHz] |
| dielectric loss factor | 400 [1 MHz] |
| specific volume resistance | 1015Ω·cm |
| colour | black |
| class of inflammability | UL 94 V-0 |
| dielectric strength | 28 kV/mm |
