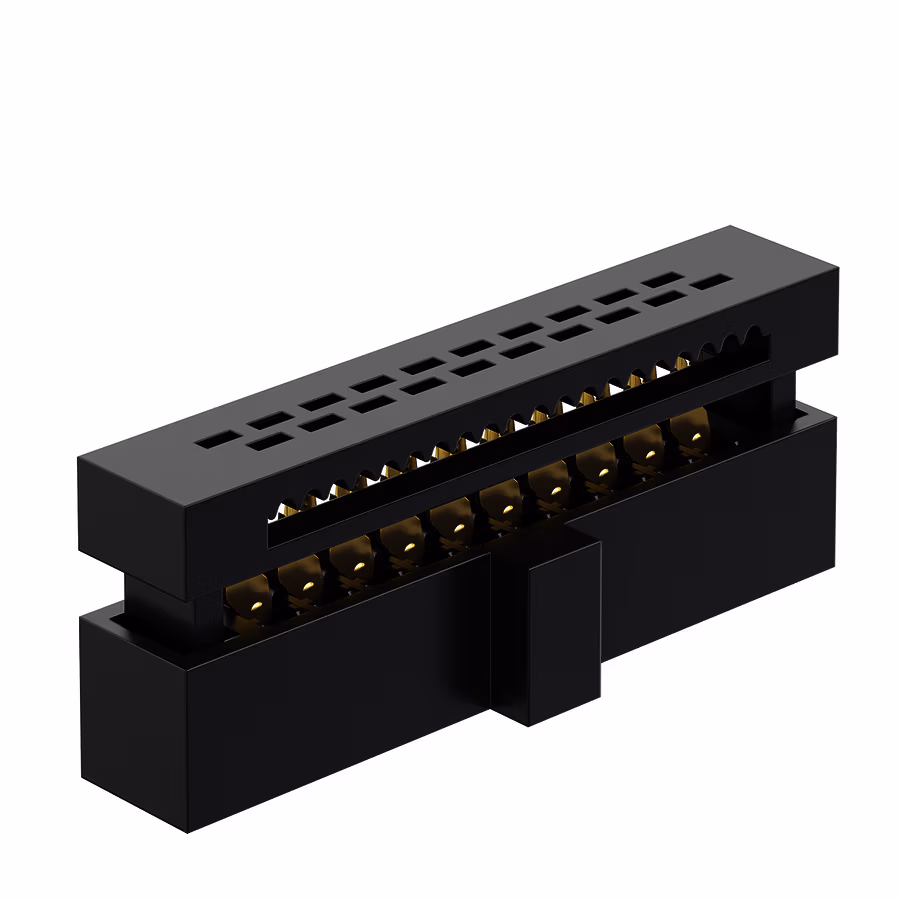

Female connector – PVV 40 G

Product ID

PVV 40 G

Product Category

IDC Connectors

Description

Two rows

Parameters

  • A:: 29.59mm

Features

no. of contacts 40
surface of contact gold-plated
surface contact /contact sleeve contact area: Ni+>0.1µm Au
contact material Cu-alloy
nominal current 1.5A
nominal voltage 100 V DC
test voltage 500 V AC
insertion / drawing force ≥0.5 … ≤1.8N per contact
insulating body material PBT, black
temperature range -40°C… +105°C
class of inflammability UL 94 V-0
specific insulation resistance >1010 Ω·m
annotation IDC-pattern 0.635mm
recommended connector pins â–¡ 0,4 mm
a 29.59mm
b 24.13mm

Datasheet

Download datasheet
