Description
Product ID

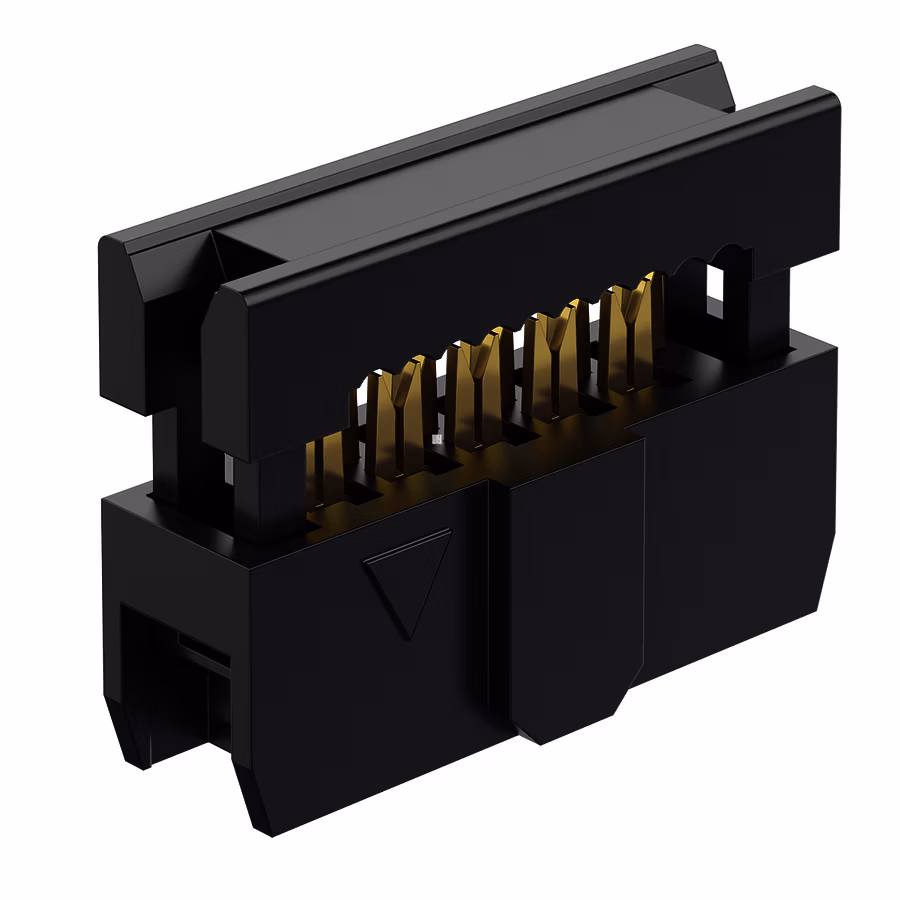

PVY 20 S
Product Category
IDC Connectors
Description
Two rows
Parameters
- A:: 25.1mm
Features
| no. of contacts | 20 |
| surface of contact | selective gold-plated |
| surface contact /contact sleeve | connection area: Ni+0.5…2.5µm Sn
contact area: Ni+>0.1µm Au |
| contact material | Cu-alloy |
| nominal current | 1.5A |
| nominal voltage | 150 V DC |
| test voltage | 500 V AC |
| insertion / drawing force | ≥0.5 … ≤1.8N per contact |
| insulating body material | PBT, black |
| temperature range | -40°C… +105°C |
| class of inflammability | UL 94 V-0 |
| specific insulation resistance | >1010 Ω·m |
| annotation | IDC-pattern, 1mm |
| recommended connector pins | â–¡ 0,5 mm |
| a | 25.1mm |
| b | 18mm |
