Description
Product ID

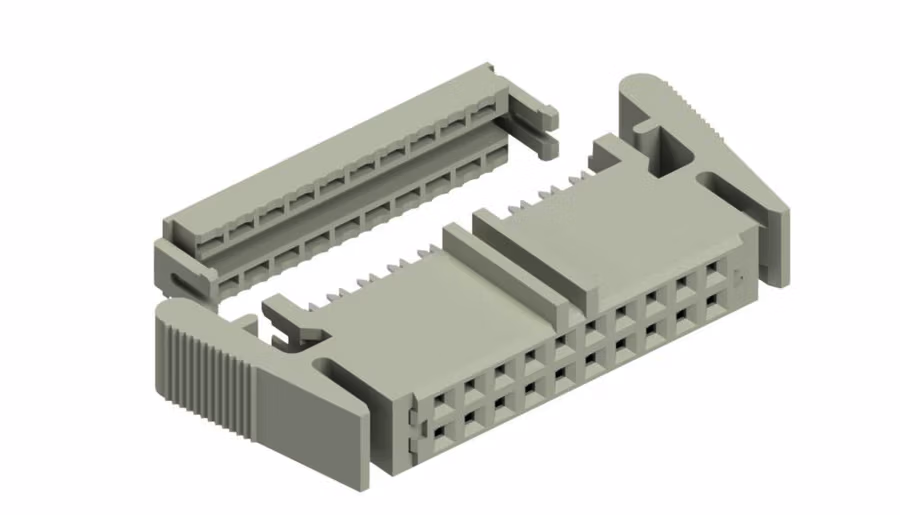

VFL 20 Z
Product Category
IDC Connectors
Description
Two rows, with polarisation boltable female header, suitable for shrouded male header ASL …
Parameters
- A:: 41.36mm
Features
| no. of contacts | 20 |
| surface of contact | tin-plated |
| surface contact /contact sleeve | Ni+≥0.2µm Au
Ni+5…10µm Sn |
| contact material | CuSn-alloy |
| creeping current resistance | KC 175 nach DIN 53480 |
| creepage | 1,4mm VDE0110 |
| air gap | 1mm VDE0110 |
| nominal current | 1A |
| nominal voltage | 250V AC insulation group A, according to VDE0110 |
| test voltage | 500 V AC |
| insertion / drawing force | ≥0.3N … ≤0.7N per contact |
| cycles of operation | ≥50 according to DIN 41640 |
| insulating body material | PC
colour: RAL 7032 |
| temperature range | -55°C… +125°C |
| class of inflammability | UL 94 V-0 |
| specific insulation resistance | >107 Ω·m |
| annotation | IDC-pattern 1.27mm |
| cross-section | AWG 28…30 = 0,09…0,05 mm² |
| insulation diameter | ≤1,1 mm |
| suitable ribbon cable round conductor flat cable | AWG 28 = massive or strand |
| a | 41.36mm |
| b | 27.34mm |
