Description
Product ID

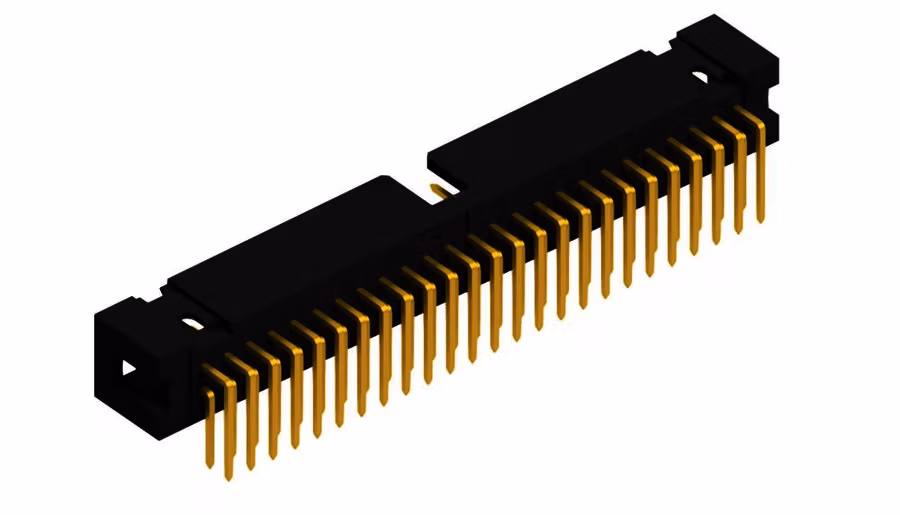

ASLA 50 G
Product Category
IDC Connectors
Description
Description for product ASLA 50
Parameters
- A:: 71.2mm
- C:: 60.96mm
Features
| no. of contacts | 50 |
| surface contact /contact sleeve | Ni+≥0.2µm Au
Ni+4…8µm Sn |
| contact material | CuSn-alloy |
| creepage | ≥1,1mm VDE0110 |
| air gap | ≥0,8 mm VDE0110 |
| nominal current | 1A |
| nominal voltage | 250V AC insulation group A, according to VDE0110 |
| test voltage | 500 V AC |
| insulating body material | PPS |
| temperature range | -40°C … +200°C (260°C / 10s) |
| class of inflammability | UL 94 V-0 |
| specific insulation resistance | >107 Ω·m |
| a | 71.2mm |
| b | 68.6mm |
| c | 60.96mm |
