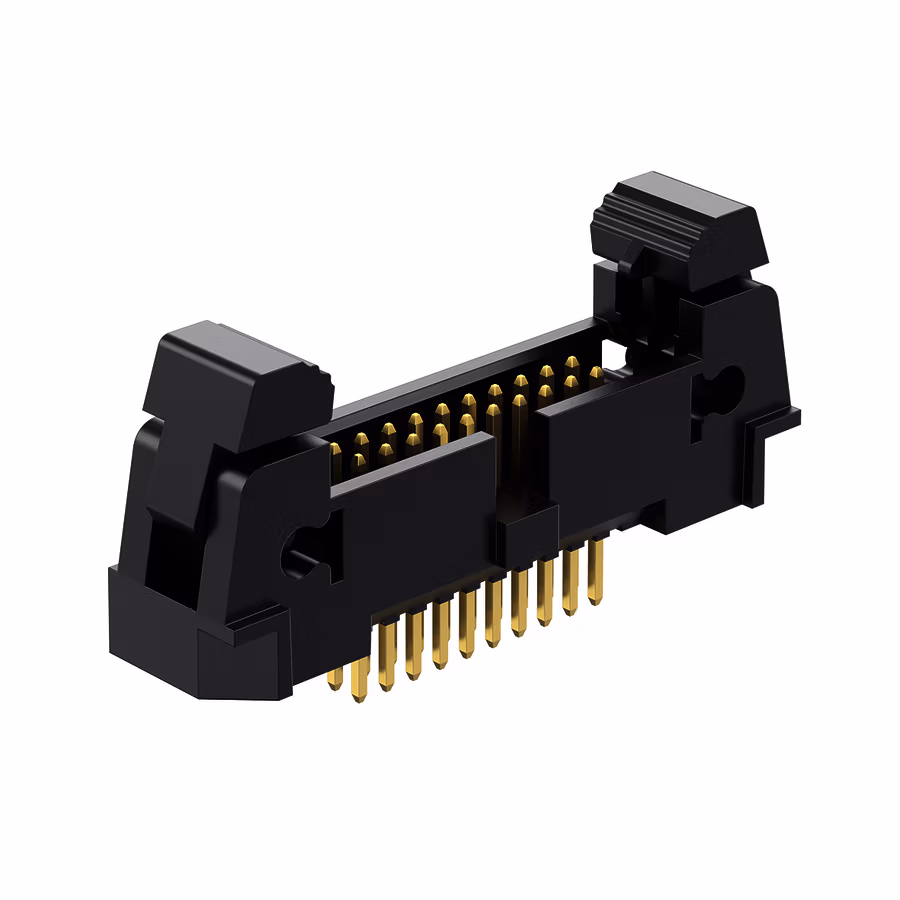

VSLGV 40 G
IDC Connectors
Description for product ASLA 10
| no. of contacts | 40 |
| surface contact /contact sleeve | Ni+≥0.2µm Au |
| contact material | Cu-alloy |
| nominal current | 1A |
| nominal voltage | 100 V DC |
| test voltage | 300 V AC |
| insulating body material | PBT |
| temperature range | -40°C … +105°C (260°C / 10s) |
| class of inflammability | UL 94 V-0 |
| specific insulation resistance | >107 Ω·m |

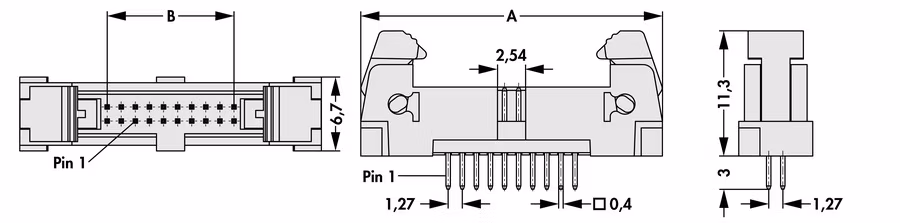

| a | 39.88mm |
| b | 24.13mm |
VSLGV 40 G
IDC Connectors
Description for product ASLA 10
| no. of contacts | 40 |
| surface contact /contact sleeve | Ni+≥0.2µm Au |
| contact material | Cu-alloy |
| nominal current | 1A |
| nominal voltage | 100 V DC |
| test voltage | 300 V AC |
| insulating body material | PBT |
| temperature range | -40°C … +105°C (260°C / 10s) |
| class of inflammability | UL 94 V-0 |
| specific insulation resistance | >107 Ω·m |
| a | 39.88mm |
| b | 24.13mm |
