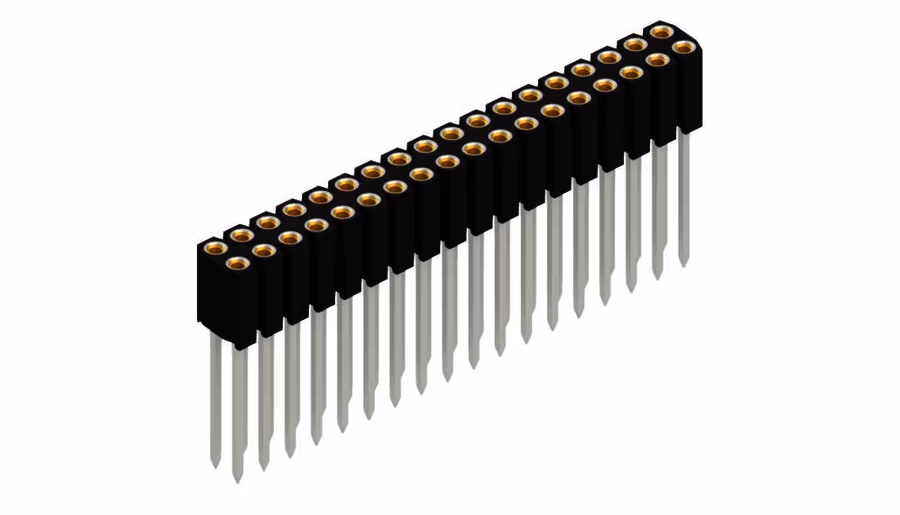

BL 10 36
Product Category
PCB Connectors
Description
? 0.635 mm and up to 0.85 mm Ø, with aligned contact pin
Parameters
Features
| pitch | 2.54 mm |
| no. of contacts | 36 |
| contact material | CuZn-alloy |
| contact sleeve | tin-plated |
| surface contact /contact sleeve | Ni+4…6µm Sn |
| contact spring | gold-plated |
| inner contact spring material | CuBe-alloy |
| inner contact spring surface | Ni+0,75µm Au |
| type internal spring | 6-fingers |
| plugability for circuit points | â–¡0,55…0,65mm
Ø0,65…0,85mm |
| insert depth | 2.5…6mm |
| insertion / drawing force | 1.3N/0.3N |
| shock resistance | 50g |
| volume resistance | ≤10 mΩ |
| vibration resistance max. | 15g |
| capacity between two adjacent contacts | ≤ 0,3pF |
| nominal current | 3A |
| nominal voltage | 150 V DC |
| test voltage | 1500 V |
| insulating body material | PA 4.6. GF |
| temperature range | -40°C… +163°C
(260°C/10 s) |
| class of inflammability | UL 94 V-0 |
| version | Wire wrap pin, â–¡0.635mm |
| specific insulation resistance | >107 Ω·m |
| connection type | THT (soldering) |
| reflow solderable | yes |
