Description
Product ID
BLR 6 SMD 100 Z
Product Category
PCB Connectors
Description

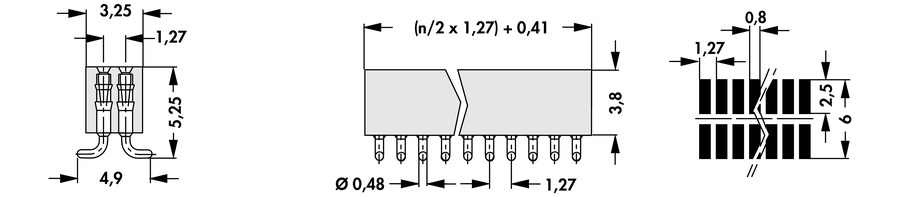

pitch 1.27 x 1.27 mm; Turned precision contacts for Ø 0.35…0.46 mm
Parameters
Features
| pitch | 1.27 mm |
| no. of contacts | 100 |
| contact material | CuZn-alloy |
| contact sleeve | tin-plated |
| surface contact /contact sleeve | Ni+4…6µm Sn |
| contact spring | gold-plated |
| inner contact spring material | CuBe-alloy |
| inner contact spring surface | Ni+0,25µm Au |
| type internal spring | 3-fingers |
| plugability for circuit points | Ø0,35…0,46mm |
| insert depth | 2.5…3mm |
| insertion / drawing force | 1.2N/0.6N |
| shock resistance | 50g |
| volume resistance | ≤20 mΩ |
| vibration resistance max. | 15g |
| capacity between two adjacent contacts | ≤1,0pF |
| nominal current | 1A |
| nominal voltage | 100 V DC |
| test voltage | 500 V |
| insulating body material | PCT, GF |
| temperature range | -40°C… +105°C
(260°C/10 s) |
| class of inflammability | UL 94 V-0 |
| version | female header |
| reflow solderable | yes |
