Description
Product ID
LA HL 1 100
Product Category
Cooling Aggregates
Description
129 x 115 mm, with axial fan
Parameters
- fan type:: 230 V AC
Features

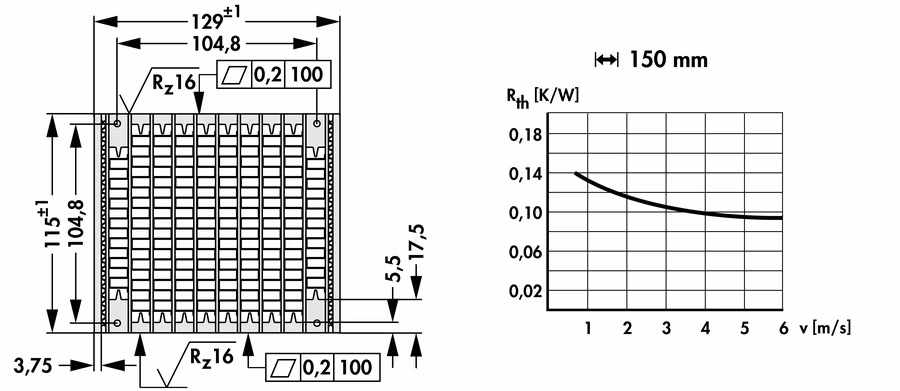

| width | 129mm |
| height | 115mm |
| length | 100mm |

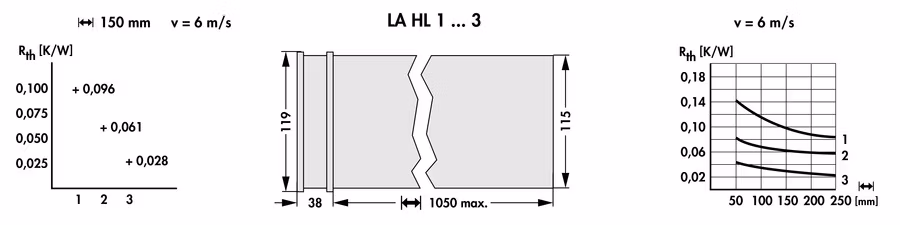

| thermal resistance | 0.14 – 0.082K/W |
| surface | aluminium natural/degreased/cutting edges not deburred (by the metre not degreased/cutting edges not deburred)
mounting area(s) milled flat |
| operating voltage of the fan motor | 230 V AC |
| type | ebmpapst 4656N |
| dimensions | 119x119x38mm |
| tension | 230 V AC |
| power inout | 19W |
| max. air volume | 160m3/h |
| temperature range | -40°C… +85°C |
| speed | 2,650min-1 |
| noise level | 47dB(A) |
| weight | 550g |
| failure rate (l10) | L10 > 37,500 h (40°C) |
