Description
Product ID
LA V 29 100 12
Product Category
Cooling Aggregates
Description

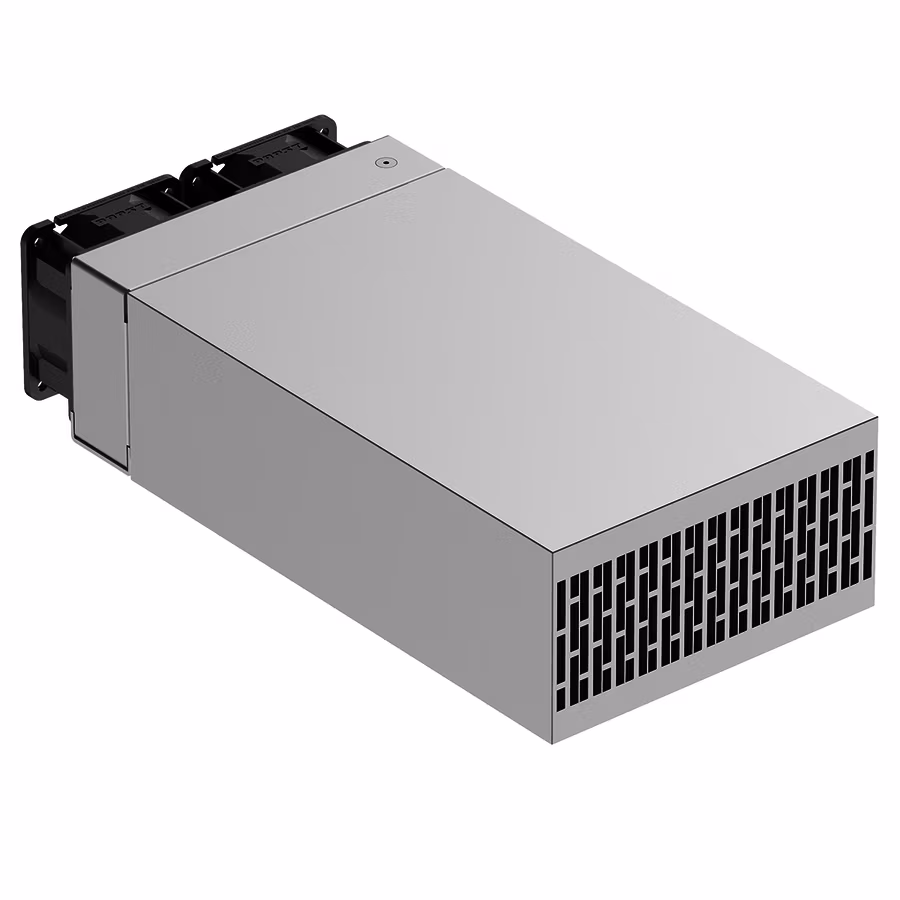

125 x 65 mm, with axial fan and air-flow chamber
Parameters
- fan type:: 12 V DC
24 V DC
48 V DC
Features

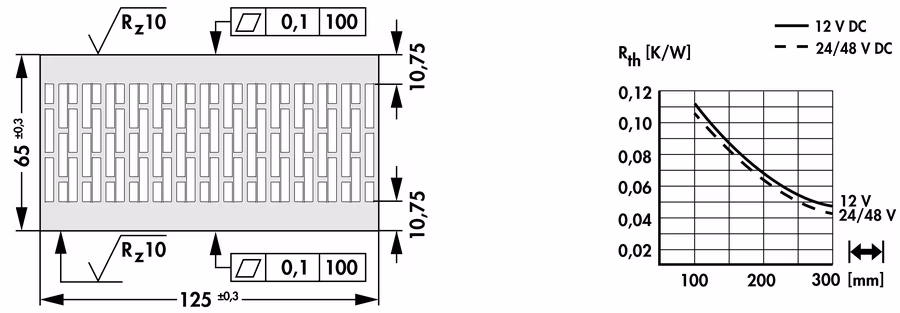

| width | 125mm |
| height | 65mm |
| length | 100mm |
| thermal resistance | 0.043 – 0.111K/W |
| surface | aluminium natural/degreased/cutting edges not deburred (by the metre not degreased/cutting edges not deburred) |
| operating voltage of the fan motor | 12 V DC
24 V DC 48 V DC |
| type | ebmpapst 612 JH |
| dimensions | 60x60x32mm |
| tension | 12 V DC |
| power inout | 7.7W |
| max. air volume | 70m3/h |
| temperature range | -20°C… +70°C |
| speed | 11,700min-1 |
| noise level | 53dB(A) |
| weight | 100g |
| failure rate (l10) | L10 > 57,500 h (40°C) |
| type | ebmpapst 614 J/2HHP |
| dimensions | 60x60x32mm |
| tension | 24 V DC |
| power inout | 14.6W |
| max. air volume | 82m3/h |
| temperature range | -20°C… 75°C |
| speed | 15,000min-1 |
| noise level | 62dB(A) |
| weight | 100g |
| failure rate (l10) | L10 > 65,000 h (40°C) |
| type | ebmpapst 618 J/2HHP |
| dimensions | 60x60x32mm |
| tension | 48 V DC |
| power inout | 14.6W |
| max. air volume | 82m3/h |
| temperature range | -20°C… 75°C |
| speed | 15,000min-1 |
| noise level | 62dB(A) |
| weight | 100g |
| failure rate (l10) | L10 > 65,000 h (40°C) |
