Description
Product ID
LA V HB 6 150 48
Product Category

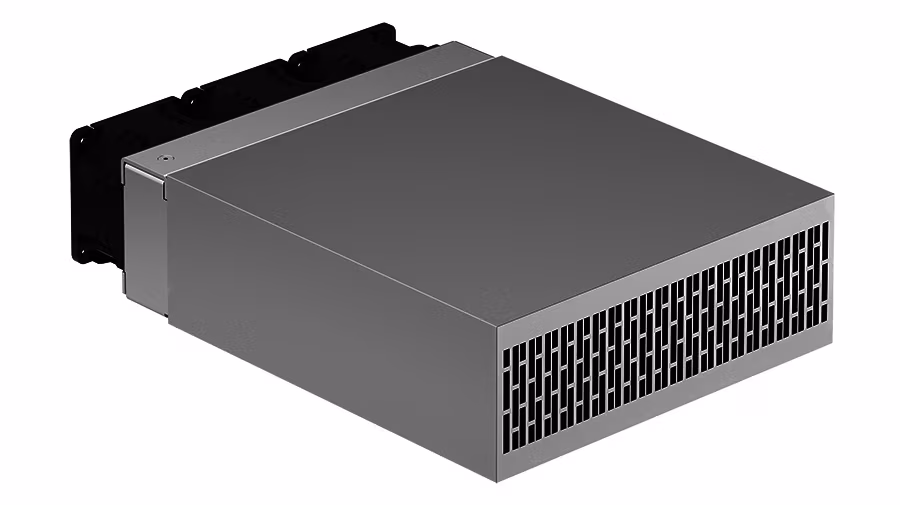

Cooling Aggregates
Description
mm, with axial fan and air-flow chamber
Parameters
- fan type:: 12 V DC
24 V DC
48 V DC
Features

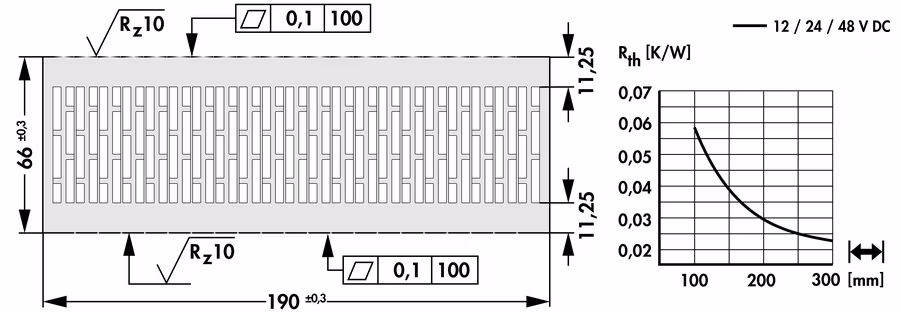

| width | 190mm |
| height | 66mm |
| length | 150mm |
| thermal resistance | 0.058 – 0.023K/W |
| surface | aluminium natural/degreased/cutting edges not deburred (by the metre not degreased/cutting edges not deburred)
mounting area(s) milled flat |
| type | ADDA AS06012 |
| dimensions | 60x60x38mm |
| tension | 12 V DC |
| power inout | 36W |
| max. air volume | 145m3/h |
| temperature range | -10°C… +70°C |
| speed | 16.000min-1 |
| noise level | 69.5dB(A) |
| weight | 125g |
| failure rate (l10) | 70.000 h (40°C) |
| type | ADDA AS06024 |
| dimensions | 60x60x38mm |
| tension | 24 V DC |
| power inout | 36W |
| max. air volume | 145m3/h |
| temperature range | -10°C… +70°C |
| speed | 16.000min-1 |
| noise level | 69.5dB(A) |
| weight | 125g |
| failure rate (l10) | 70.000 h (40°C) |
| type | ADDA AS06048 |
| dimensions | 60x60x38mm |
| tension | 48 V DC |
| power inout | 36W |
| max. air volume | 145m3/h |
| temperature range | -10°C… +70°C |
| speed | 16.000min-1 |
| noise level | 69.5dB(A) |
| weight | 125g |
| failure rate (l10) | 70.000 h (40°C) |
