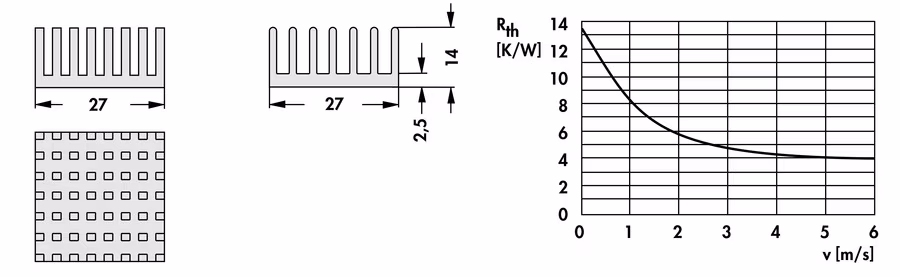

ICK BGA 27 x 27 x 14
For Processors
27 x 27 x 14 mm, for IC design BGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 27mm |
| height | 14mm |
| plate thickness | 2.5mm |
| length | 27mm |
| thermal resistance | 13.5 – 4K/W |
| dissipation loss | 9.5W |
| surface | black anodised |
ICK BGA 27 x 27 x 14
For Processors
27 x 27 x 14 mm, for IC design BGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 27mm |
| height | 14mm |
| plate thickness | 2.5mm |
| length | 27mm |
| thermal resistance | 13.5 – 4K/W |
| dissipation loss | 9.5W |
| surface | black anodised |
| Surface | |
|---|---|
| Length (mm) | 27mm |
| Width (mm) | 27mm |
| Height (mm) | 14mm |
