ICK BGA 29 x 29 x 6
For Processors
29 x 29 x 6 mm, for IC design BGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 29mm |
| height | 6mm |
| plate thickness | 1.8mm |
| length | 29mm |

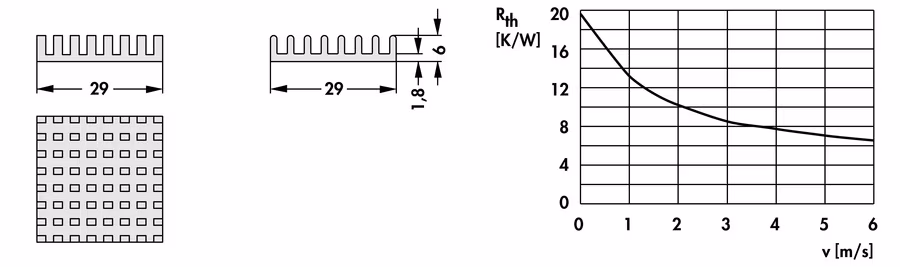

| thermal resistance | 19.5 – 6.4K/W |
| dissipation loss | 3W |
| surface | black anodised |
ICK BGA 29 x 29 x 6
For Processors
29 x 29 x 6 mm, for IC design BGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 29mm |
| height | 6mm |
| plate thickness | 1.8mm |
| length | 29mm |
| thermal resistance | 19.5 – 6.4K/W |
| dissipation loss | 3W |
| surface | black anodised |
| Surface | |
|---|---|
| Length (mm) | 29mm |
| Width (mm) | 29mm |
| Height (mm) | 6mm |
