ICK PGA 14 x 14 x 14
For Processors

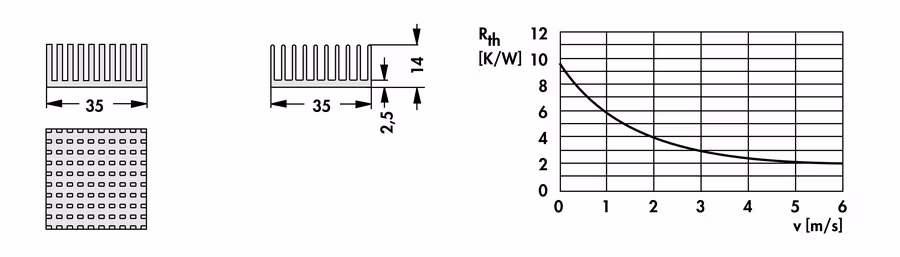

35 x 35 x 14 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 35mm |
| height | 14mm |
| plate thickness | 2.5mm |
| length | 35mm |
| thermal resistance | 9.6 – 2K/W |
| dissipation loss | 12.5W |
| surface | black anodised |
ICK PGA 14 x 14 x 14
For Processors
35 x 35 x 14 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 35mm |
| height | 14mm |
| plate thickness | 2.5mm |
| length | 35mm |
| thermal resistance | 9.6 – 2K/W |
| dissipation loss | 12.5W |
| surface | black anodised |
| Surface | |
|---|---|
| Length (mm) | 35mm |
| Width (mm) | 35mm |
| Height (mm) | 14mm |
