ICK PGA 15 x 15
For Processors

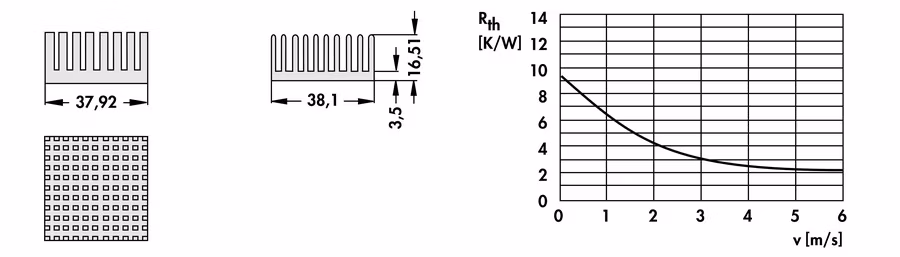

38,1 x 37,92 x 16,5 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 38.1mm |
| height | 16.51mm |
| plate thickness | 3.5mm |
| length | 37.92mm |
| thermal resistance | 9.4 – 2.1K/W |
| dissipation loss | 5.9W |
| surface | black anodised |
ICK PGA 15 x 15
For Processors
38,1 x 37,92 x 16,5 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 38.1mm |
| height | 16.51mm |
| plate thickness | 3.5mm |
| length | 37.92mm |
| thermal resistance | 9.4 – 2.1K/W |
| dissipation loss | 5.9W |
| surface | black anodised |
| Surface | |
|---|---|
| Length (mm) | 37.92mm |
| Width (mm) | 38.1mm |
| Height (mm) | 16.51mm |
