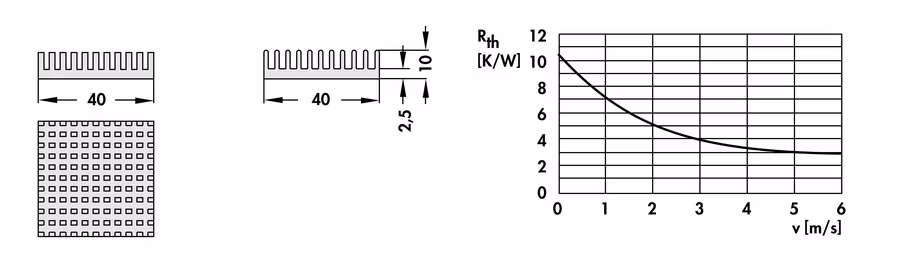

ICK PGA 16 x 16 x 10
For Processors
40 x 40 x 10 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 40mm |
| height | 12.3mm |
| plate thickness | 3.5mm |
| length | 40mm |
| thermal resistance | 10.5 – 3K/W |
| dissipation loss | 12.9W |
| surface | black anodised |
ICK PGA 16 x 16 x 10
For Processors
40 x 40 x 10 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 40mm |
| height | 12.3mm |
| plate thickness | 3.5mm |
| length | 40mm |
| thermal resistance | 10.5 – 3K/W |
| dissipation loss | 12.9W |
| surface | black anodised |
| Surface | |
|---|---|
| Length (mm) | 40mm |
| Width (mm) | 40mm |
| Height (mm) | 12.3mm |
