ICK PGA 17 x 17
For Processors

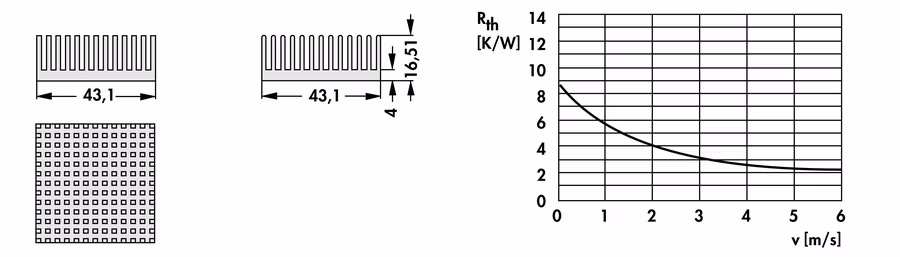

43,1 x 43,1 x 16,5 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 43.1mm |
| height | 16.51mm |
| plate thickness | 4mm |
| length | 43.1mm |
| thermal resistance | 8.6 – 2.3K/W |
| dissipation loss | 6.9W |
| surface | black anodised |
ICK PGA 17 x 17
For Processors
43,1 x 43,1 x 16,5 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 43.1mm |
| height | 16.51mm |
| plate thickness | 4mm |
| length | 43.1mm |
| thermal resistance | 8.6 – 2.3K/W |
| dissipation loss | 6.9W |
| surface | black anodised |
| Surface | |
|---|---|
| Length (mm) | 43.1mm |
| Width (mm) | 43.1mm |
| Height (mm) | 16.51mm |
