ICK PGA 20 x 20 x 10
For Processors
50 x 50 x 10 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 50mm |
| height | 10mm |
| plate thickness | 2.5mm |
| length | 50mm |

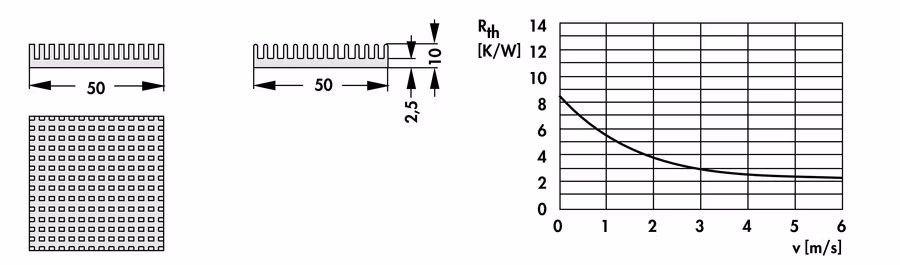

| thermal resistance | 8.5 – 2.2K/W |
| dissipation loss | 15.1W |
| surface | black anodised |
ICK PGA 20 x 20 x 10
For Processors
50 x 50 x 10 mm, for IC design PGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 50mm |
| height | 10mm |
| plate thickness | 2.5mm |
| length | 50mm |
| thermal resistance | 8.5 – 2.2K/W |
| dissipation loss | 15.1W |
| surface | black anodised |
| Surface | |
|---|---|
| Length (mm) | 50mm |
| Width (mm) | 50mm |
| Height (mm) | 10mm |
