Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

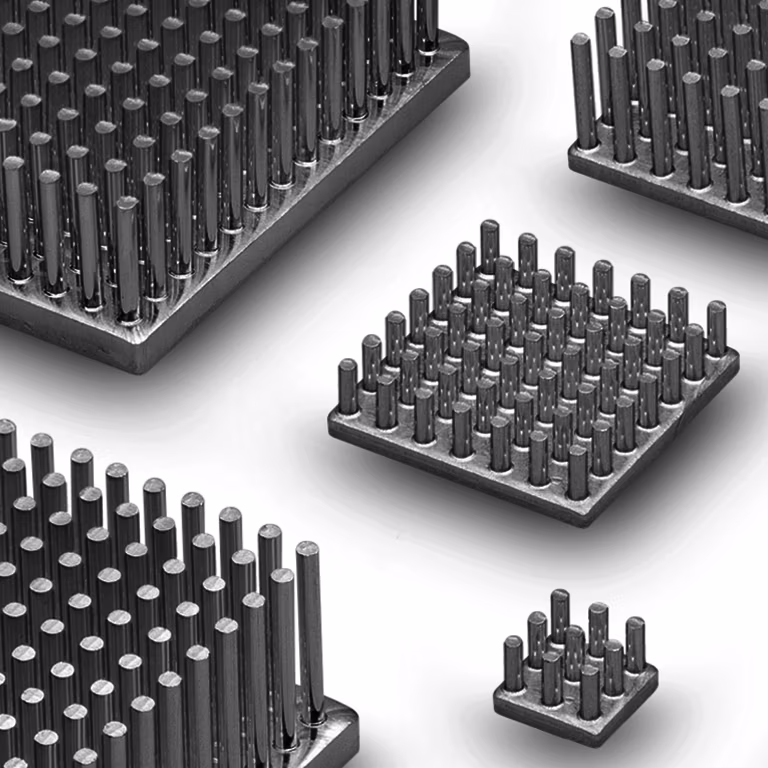

Pin heatsinks – ICK S 40 x 40 x 25

Description

ICK S 40 x 40 x 25

For Processors

40 x 40 x 25 mm, pin heatsinks quadratic

design	rectangle
way of fixation	therm. conductive foil therm. cond. adhesive
socket	universal
suitable for processor type	universal
width	40mm
height	25mm
plate thickness	3.5mm
weight	37g
length	40mm

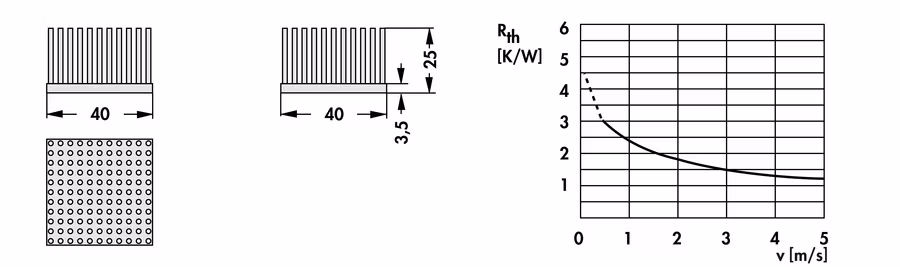

thermal resistance	3.1 – 1.25K/W
dissipation loss	23.7W
surface	Al-natural
