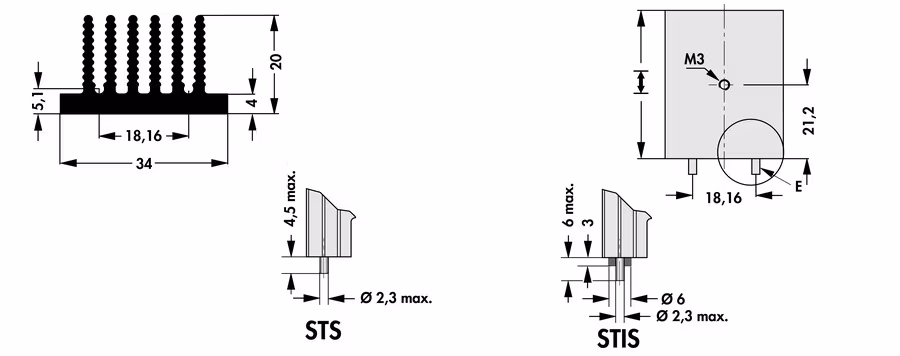

SK 460 37.5 STS
Profile Heatsinks & Liquid Coolers
34 x 20 mm, for semiconductor screw-mounting
| way of fixation | transistor screw mounting |
| width | 34mm |
| height | 20mm |
| plate thickness | 4mm |
| length | 37.5mm |
| thermal resistance | 7.9K/W |
| mounting method | with solder pin |
| drilling pattern | SIP-Multiwatt
TO 218 TO 220 TO 247 TO 248 |
| surface | black anodised |
SK 460 37.5 STS
Profile Heatsinks & Liquid Coolers
34 x 20 mm, for semiconductor screw-mounting
| way of fixation | transistor screw mounting |
| width | 34mm |
| height | 20mm |
| plate thickness | 4mm |
| length | 37.5mm |
| thermal resistance | 7.9K/W |
| mounting method | with solder pin |
| drilling pattern | SIP-Multiwatt
TO 218 TO 220 TO 247 TO 248 |
| surface | black anodised |
| Surface | |
|---|---|
| Length (mm) | 37.5mm |
| Width (mm) | 34mm |
| Height (mm) | 20mm |
