Description
Product ID
LA V 9 100 230
Product Category
Cooling Aggregates
Description
80 x 83 mm, with axial fan and air-flow chamber
Parameters
- fan type:: 24 V DC
230 V AC
Features

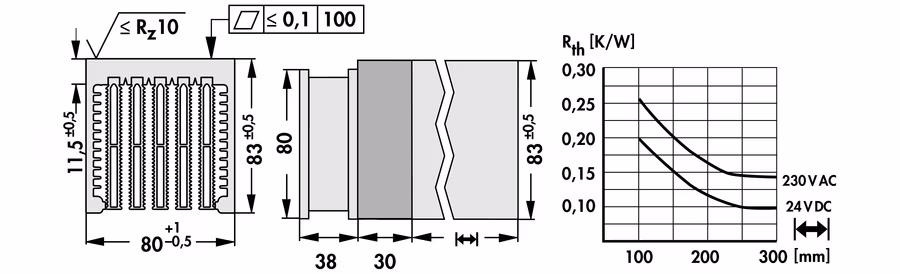

| width | 80mm |
| height | 83mm |
| length | 100mm |
| thermal resistance | 0.26 – 0.1K/W |
| surface | aluminium natural/degreased/cutting edges not deburred (by the metre not degreased/cutting edges not deburred)
mounting area(s) milled flat |
| operating voltage of the fan motor | 24 V DC
230 V AC |
| type | ebmpapst 8556N |
| dimensions | 80x80x38mm |
| tension | 230 V AC |
| power inout | 12W |
| max. air volume | 50m3/h |
| temperature range | -40°C… +90°C |
| speed | 2,800min-1 |
| noise level | 31dB(A) |
| weight | 490g |
| failure rate (l10) | L10 > 52,500 h (40°C) |
| type | ebmpapst 8314H |
| dimensions | 80x80x32mm |
| tension | 24 V DC |
| power inout | 6W |
| max. air volume | 80m3/h |
| temperature range | -20°C… 75°C |
| speed | 5,000min-1 |
| noise level | 48dB(A) |
| weight | 170g |
| failure rate (l10) | L10 > 55,000 h (40°C) |
