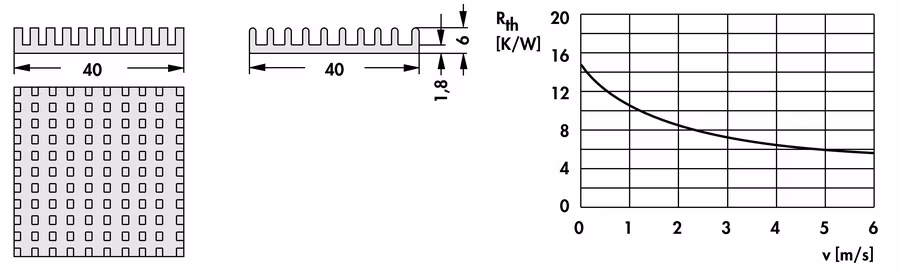

ICK BGA 40 x 40
For Processors
40 x 40 x 6 mm, for IC design BGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 40mm |
| height | 6mm |
| plate thickness | 1.8mm |
| length | 40mm |
| thermal resistance | 14.6 – 5.8K/W |
| dissipation loss | 4.3W |
| surface | black anodised |
ICK BGA 40 x 40
For Processors
40 x 40 x 6 mm, for IC design BGA and others
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 40mm |
| height | 6mm |
| plate thickness | 1.8mm |
| length | 40mm |
| thermal resistance | 14.6 – 5.8K/W |
| dissipation loss | 4.3W |
| surface | black anodised |
| Surface | |
|---|---|
| Length (mm) | 40mm |
| Width (mm) | 40mm |
| Height (mm) | 6mm |
