ICK S 36 x 36 x 20
For Processors

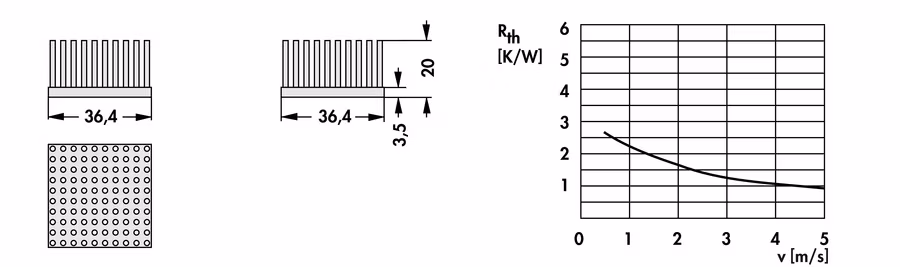

36 x 36 x 20 mm, pin heatsinks quadratic
| design | rectangle |
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 36.4mm |
| height | 20mm |
| plate thickness | 3.5mm |
| weight | 24g |
| length | 36.4mm |
| thermal resistance | 3.2 – 0.95K/W |
| dissipation loss | 22W |
| surface | Al-natural |
ICK S 36 x 36 x 20
For Processors
36 x 36 x 20 mm, pin heatsinks quadratic
| design | rectangle |
| way of fixation | therm. conductive foil
therm. cond. adhesive |
| socket | universal |
| suitable for processor type | universal |
| width | 36.4mm |
| height | 20mm |
| plate thickness | 3.5mm |
| weight | 24g |
| length | 36.4mm |
| thermal resistance | 3.2 – 0.95K/W |
| dissipation loss | 22W |
| surface | Al-natural |
| Surface | |
|---|---|
| Length (mm) | 36.4 |
| Width (mm) | 36.4 |
| Height (mm) | 20 |
